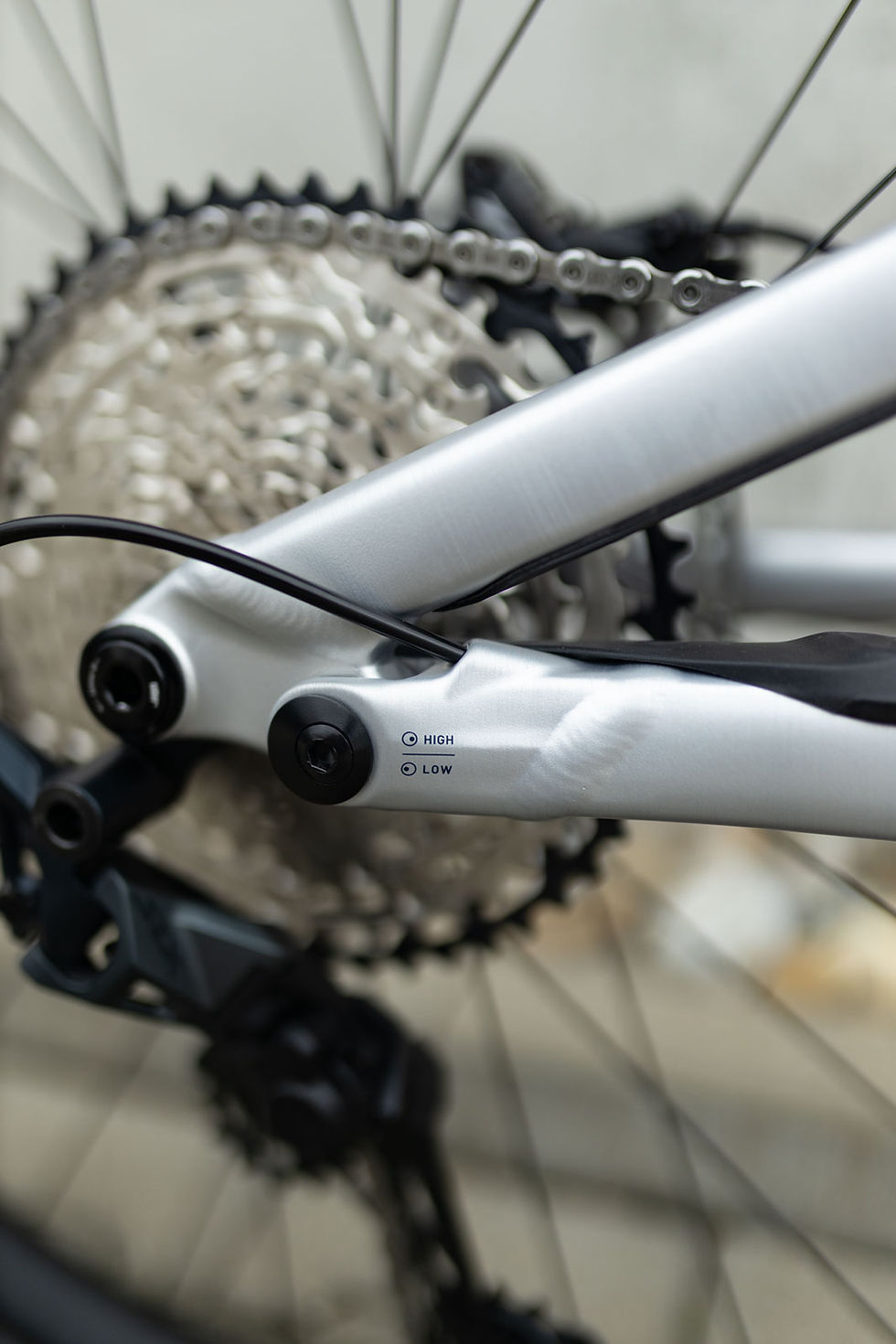

RAHMEN
M5 Alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
SATTELSTÜTZKLEMME
Alloy, 38.6mm

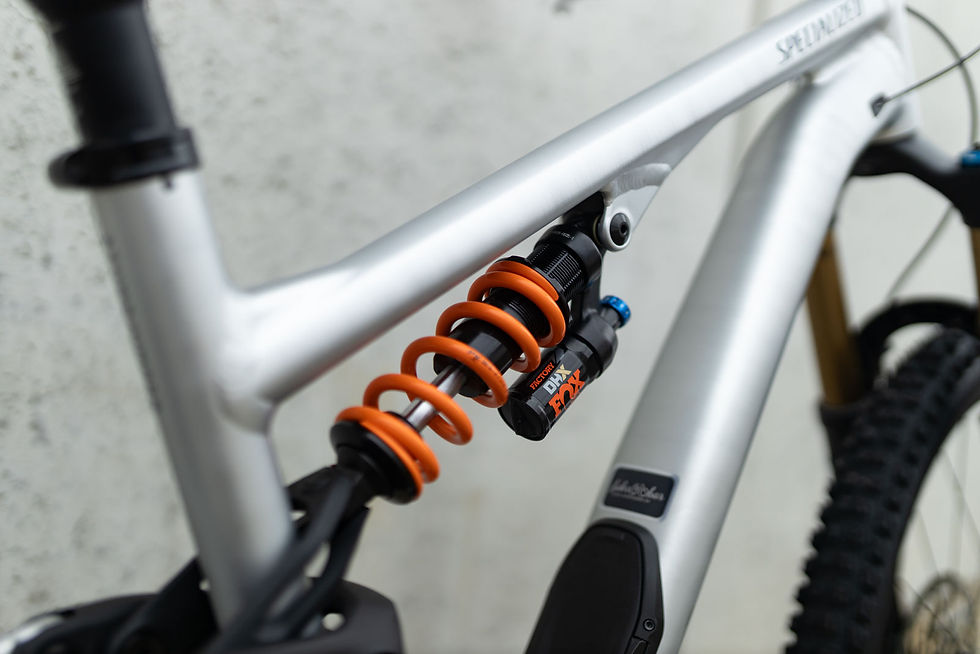

DÄMPFER
FOX DHX Factory, Ride Dynamics Trail Tune, 210x55mm, S2: 400lbs, S3: 450lbs, S4: 500bs, S5: 550lbs, S6: 600lbs
GABEL
FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel
BREMSE VORNE
TRP DH-R EVO, 4-piston caliper, hydraulic disc, 220mm
BREMSE HINTEN
TRP DH-R EVO, 4-piston caliper, hydraulic disc, 203mm
SCHALTHEBEL
Shimano SLX, M7100, 12spd
SCHALTWERK
Shimano SLX, M7100, SGS, 12-speed
KASSETTE
Shimano SLX, CS-M7100, 12-speed, 10-51t
KETTE
Shimano SLX, M7100, 12-speed
KURBELGARNITUR
Shimano SLX, M7120, 32T ring, 55mm chainline, S2-S3:165mm, S4-S6: 170mm
INNENLAGER
Shimano, BB-MT801, Threaded
FELGEN
Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: 27.5
VORDERRADNABE
DT Swiss 370, 15x110mm, 28h
HINTERRADNABE
DT Swiss 370, 12x148mm, 32h
SPEICHEN
Sapim Force
VORDERREIFEN
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
HINTERREIFEN
Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3"
SCHLÄUCHE
Standard Presta valve
VORBAU
Deity, 35mm clamp, 35mm length
LENKER
Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise: S3-S6: 38mm rise
LENKERGRIFFE
Deity, Knuckleduster, Black
SATTEL
Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm
SATTELSTÜTZE
PNW Loam OE Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm
GEWICHT
16.90 kg (37 lb, 4.1 oz) S4
Art.-Nr.: 2294
